PRD GT 3.5 Features

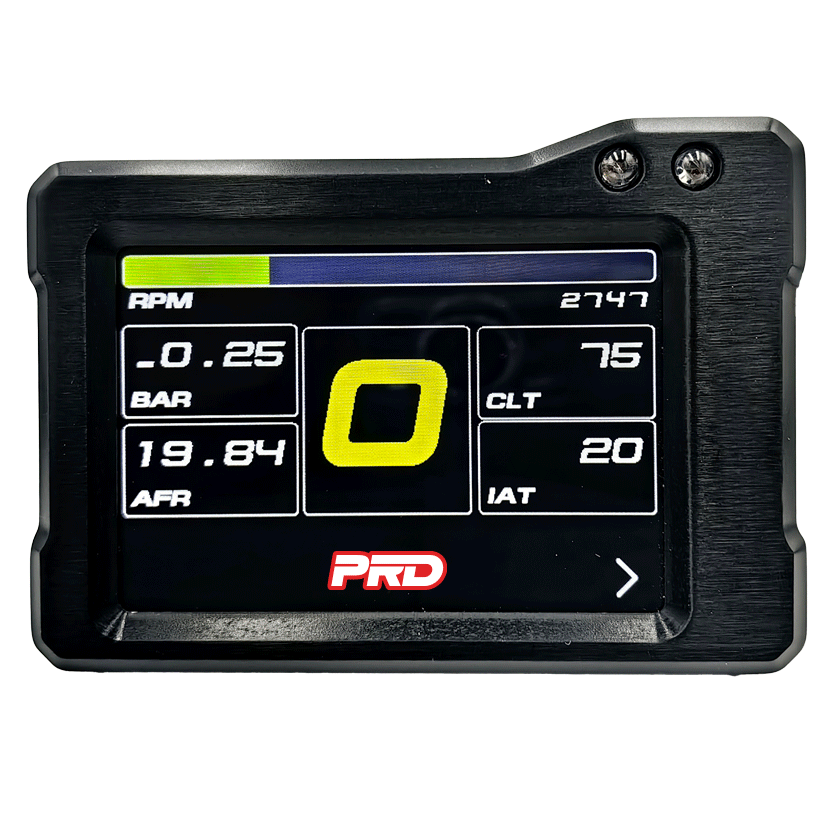

3.5” High-Brightness TFT Touchscreen
Intuitive and responsive interface with 480×320 resolution and 262k color support for excellent visibility in any environment.
Full User Interface Customization via App
Design your own layouts, select parameters, set alarms, and personalize colors, units, and styles—directly from the PRD Configurator.
Universal ECU Compatibility
Supports major OEM ECUs through CAN and OBDII, including standalone ECUs like CAN bus x1, Ecu.OBD-11bit, OBD-29bit, ECUMASTER, LINK GenericDASH Pro 2, MAXXECU, DTA, AEM, KMS, HALTECH, EURO2, ADAPTRONIC, MTRON.
Multi-Page Display with Unlimited Data Fields
Easily navigate multiple user-created pages with custom variables, scaling, and visual elements like dynamic bar graphs.
Custom Touch Buttons
Integrate user-defined buttons directly on the display for quick access to critical functions or screens.
Advanced Alerts & Shift Lights
Configurable red and blue LEDs, plus on-screen alerts for Boost, EGT, coolant temp, oil pressure, AFR, and more.
Check Engine Functionality
Reads and clears error codes from both standalone ECUs and OBD2 systems for fast troubleshooting.
Custom CAN Bus Messaging
Manually define CAN IDs and structures to display any variable from your ECU or additional modules.
Optional GPS Integration (External Module CAN to GPS from PRD)
Enables performance tracking and custom acceleration metrics

Display: 3.5″ TFT LCD Touch Display
Contrast: 1000:1
Brightness: 700cd/m2 – 1,100 Lumen
Alarm & Shift LEDs: 2 configurable blue and red LEDs
CAN Connections: 1
ECU Connections: CAN
ECU Compatibility: CAN bus x1, Ecu.OBD-11bit, OBD-29bit, ECUMASTER, LINK ID GenericDASH Pro 2, MAXXECU, DTA, AEM, KMS, HALTECH, EURO2, ADAPTRONIC, MTRON
Expansion CAN Connection: GPS to CAN, EGT to CAN, CAN Switch Board, Wideband Controller to CAN
Body: CNC Anodized Aluminium
Supply Voltage Range: 8-18V DC
Operating Temperature: -40 to +120 C
Max Current Draw: max 0.3A at 12V
Dimensions: 106 X 75X 15mm
Weight: 200g

PRD GT 3.5
