Prd 700 Boost controller
- 7 control modes (Off-Low-High-RPM1-RPM2-VSS-GEAR)
- Boost by RPM (configurable 2D Map)
- Boost by VSS (configurable 2D Map)
- Boost per GEAR
- Can-Bus integration (Timing Advance, TPS, CWT, IAT etc)
- Shift Light fully configurable visual shift indication
- Exhaust Gas Temperature (K-Type)
- Failsafe settings (boost cut & warning for AFR , Boost or EGT limits)
- Failsafe setting (boost cut &warning for WMI)
- RPM Duty Add (4Dmap)
- DTC Fault clearing
- (Under Dev.) Programmable Aux failsafe input to limit boost under conditions (for example when
- Nitrous switch is activated or when there is no voltage from methanol controller etc.)
- (Under Dev.) Logging using our purpose-built Windows application to monitor & plot real time
- values like Actual duty cycle, spark advance, boost pressure etc
- (Under Dev.) VAG Group can bus mode (i.e. Timing retardation per cylinder etc)

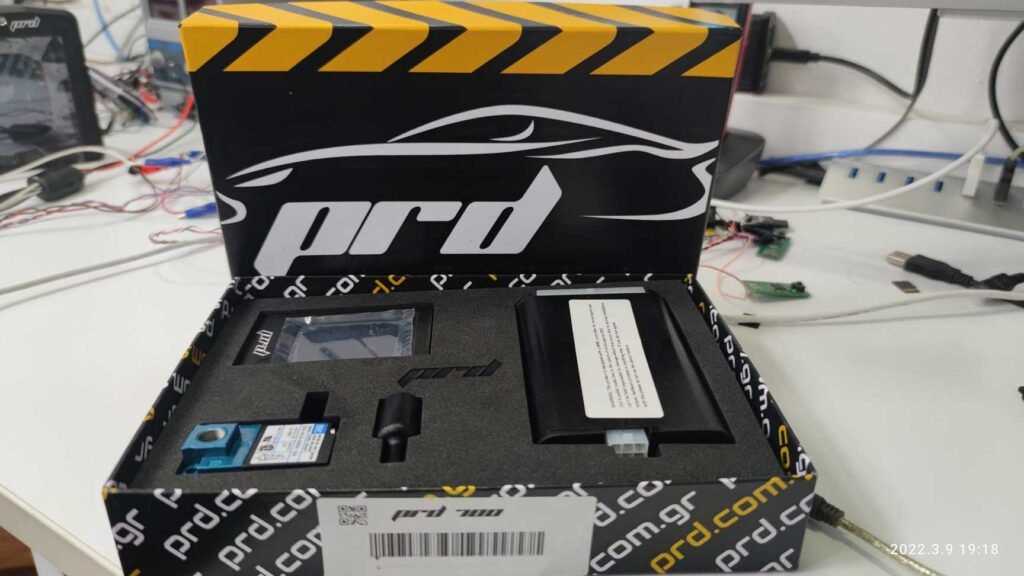

PRD 700 boost controller

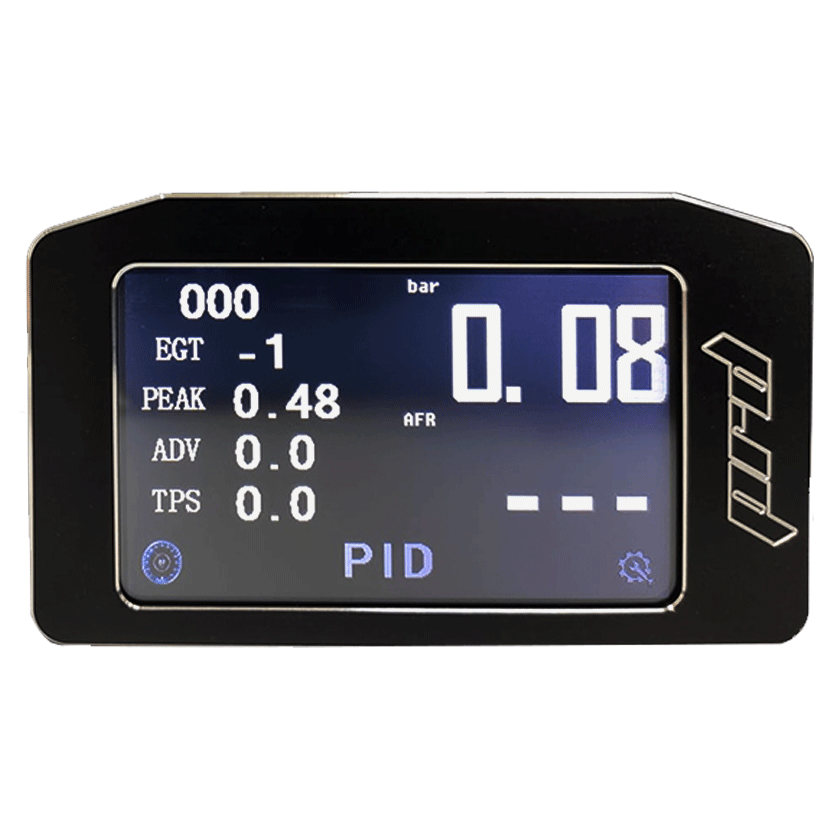

- Display: 2.4″ TFT Intelligent LCD Touch Display
- 4Bar MAP sensor
- Solenoid valve
- Body: CNC Anodized Aluminium
- Supply Voltage Range: 8-18V DC
- Operating Temperature: -10 to +60 C
- Max Current Draw: max 0.3A at 12V
- Dimensions: 81 X 49 X 12mm
- Weight: 62g
