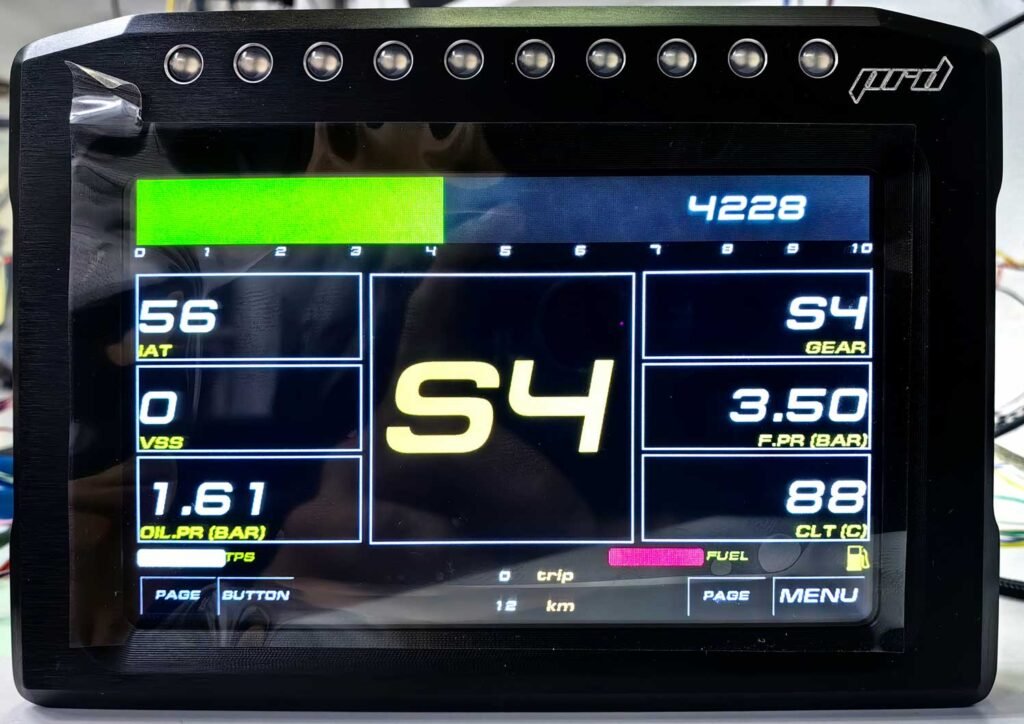

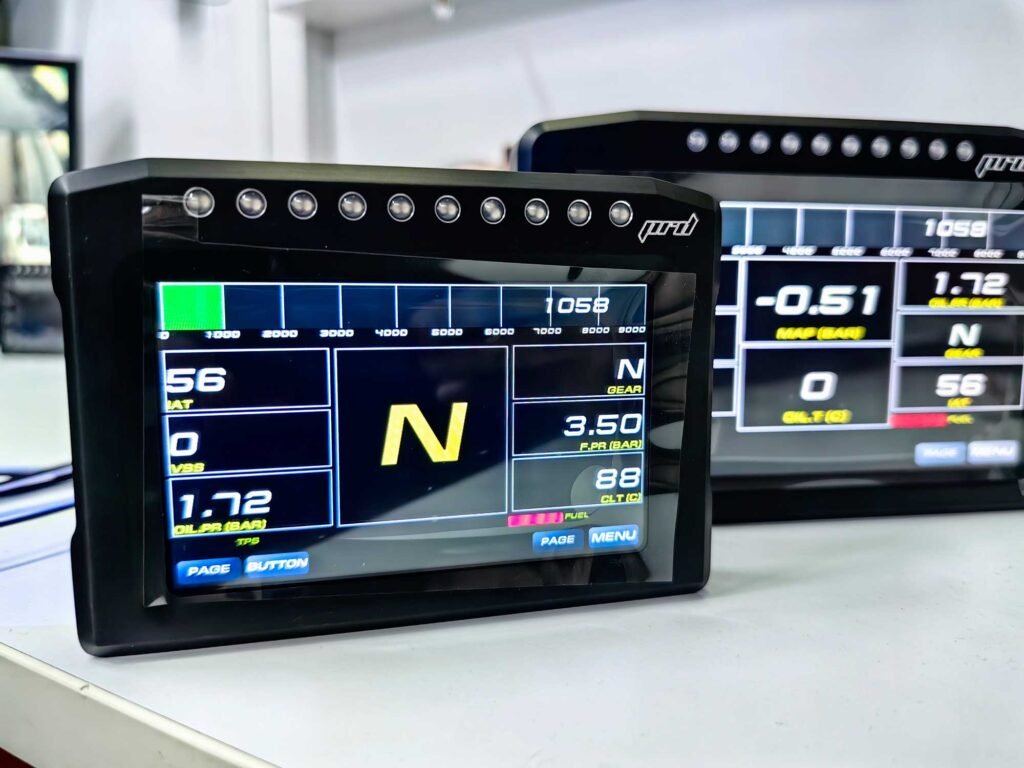

PRD DASH 5
- 5” TFT intelligent LCD Touch Display
Intuitive and responsive interface support for excellent visibility in any environment with Adjustable Brightness. - Full User Interface Customization
Design your own layouts, select parameters, set alarms, and personalize colors, units, and styles. - Universal ECU Compatibility
Supports major OEM ECUs through CAN and OBDII, including standalone ECUs like CAN bus x1, Ecu.OBD-11bit, OBD-29bit, ECUMASTER, LINK GenericDASH, MAXXECU, DTA, AEM, KMS, HALTECH, EURO2, ADAPTRONIC, MTRON. - Multi-Page Display with Unlimited Data Fields
Easily navigate multiple user-created pages with custom variables, scaling, and visual elements like dynamic bar graphs. - 8 Customizable Touch Buttons
Integrate user-defined buttons directly on the display for quick access to critical functions or screens. - Peak Value Monitoring
Keep track of the highest recorded values for critical engine data such as RPM, boost pressure, EGT, coolant and oil temperature, and injector duty - Digital CAN Rotary Switch
Simulates a traditional 10-position rotary switch over CAN-Bus, allowing you to select presets or modes electronically—no physical wiring required. Ideal for boost levels, or map switching. - Check Engine Functionality
Reads codes from both standalone ECUs and OBD2 systems for fast troubleshooting. - Custom CAN Bus Messaging
Manually define CAN IDs and structures to display any variable from your ECU or additional modules. - Integrated Odometer & Dashboard Warning Indicators
Track total mileage directly on the display and stay informed with built-in support for standard vehicle dashboard warning lights. Ideal for monitoring vehicle usage and catching critical alerts during racing, tuning, or daily driving. - Optional GPS Integration (External Module CAN to GPS from PRD)
Enables performance tracking and custom acceleration metrics
PRD DASH 5
- Display: 5″ TFT intelligent LCD Touch Display
- Contrast: 1000:1
- Brightness: 700cd/m2 – 1,100 Lumen
- Processor : 32bit ARM Cortex-M4 190 MHz
- Alarm & Shift LEDs: 10 configurable LEDs
- CAN Connections: 1
- Input: 11 Analog Inputs and 2 Digital
- ECU Connections: CAN
- ECU Compatibility: CAN bus x1, Ecu.OBD-11bit, OBD-29bit, ECUMASTER, LINK GenericDASH, MAXXECU, DTA, AEM, KMS, HALTECH, EURO2, ADAPTRONIC, MTRON,
- Expansion CAN Connection: GPS to CAN, EGT to CAN, CAN Switch Board, Wideband Controller to CAN
- Body: CNC Anodized Aluminium
- Supply Voltage Range: 8-18V DC
- Operating Temperature: -20 to +120 C
